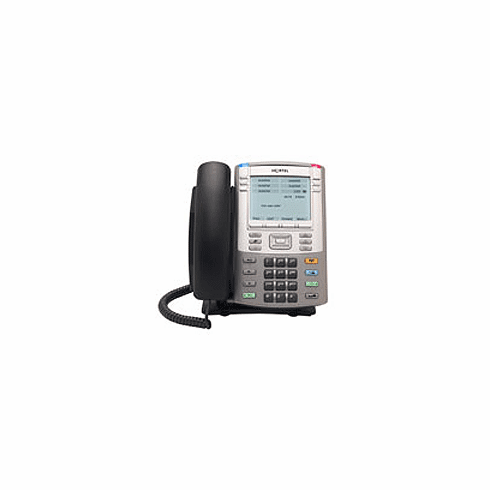

Nortel 1140E IP Phone
IP Phone 1140E delivers an innovative array of features including a high-resolution, support for data and web-based applications as presented from external application servers, a four way navigation cluster with new Enter/Send Key and, USB peripheral support for superior navigation experience, an integrated Bluetooth Audio gateway for greater freedom and mobility at the desktop, an integrated phone switch with Gigabyte Ethernet LAN and PC ports, a local Tools Menu for simplified administration along with the suite of features delivered from Nortel Communication Servers.
Features: Supports up to 12 programmable line/feature keys, 14 fixed keys and 4 soft label keys. High resolution, graphical, fully backlit, monochrome Grey scale, pixel based (240 x 160) Liquid Crystal Display. 5 position (-5 to +55 degrees) adjustable foot stand. 4 way navigation cluster with new Enter/Send key. Universal Serial Bus for support of standard USB mice, keyboard and powered hubs. Data and web centric applications text and graphical presentation support as delivered from external application servers. Integrated auto-sensing 10/100/1000 Base-T Ethernet switch with shared PC access (one LAN and one PC port). Secure local Tools Menu for access to user preferences, configuration tools, diagnostics and network statistics. Voice Message/Incoming Call and Feature Status Indicator LED's. IEEE 802.3af Power over Ethernet, pre-standard vendor power schemes and local AC power options. Supports Expansion Module, delivering an additional 18 programmable line/feature keys per module. Icon and English-text based keycaps. Field upgradeable firmware via Trivial File Transfer Protocol (TFTP) or UNIStim File. Transfer Protocol (UFTP). Desk or Wall Mountable.
Features: Supports up to 12 programmable line/feature keys, 14 fixed keys and 4 soft label keys. High resolution, graphical, fully backlit, monochrome Grey scale, pixel based (240 x 160) Liquid Crystal Display. 5 position (-5 to +55 degrees) adjustable foot stand. 4 way navigation cluster with new Enter/Send key. Universal Serial Bus for support of standard USB mice, keyboard and powered hubs. Data and web centric applications text and graphical presentation support as delivered from external application servers. Integrated auto-sensing 10/100/1000 Base-T Ethernet switch with shared PC access (one LAN and one PC port). Secure local Tools Menu for access to user preferences, configuration tools, diagnostics and network statistics. Voice Message/Incoming Call and Feature Status Indicator LED's. IEEE 802.3af Power over Ethernet, pre-standard vendor power schemes and local AC power options. Supports Expansion Module, delivering an additional 18 programmable line/feature keys per module. Icon and English-text based keycaps. Field upgradeable firmware via Trivial File Transfer Protocol (TFTP) or UNIStim File. Transfer Protocol (UFTP). Desk or Wall Mountable.
